Feature
Superior Performance
Examination of an obesity patient is easily available with the maximum exposure of 100 mAs.
X-ray maximum output is 120mA/110kVp. It provides a high quality image and durability and shows a high resolution with a "Low Dose" compared to other brands.
Smart Compact Design
Smart 300's floor rail is divided into 3 pieces, which removes the limitations of installation in a small space.
The position of the detector can be confirmed through the transparent table,
providing convenience and efficiency on a daily basis.
Saving Electric Power
It requires an electric power of AC 5.6KW / AC 220V single phase, so you can use this smart device with minimal
electricity of 3-5KW.
System Integration
High resolution is represented even if you use DR / CR, which are varieties of other brands. It offers high connectivity
with HIS/PACS regardless of type.
SMART

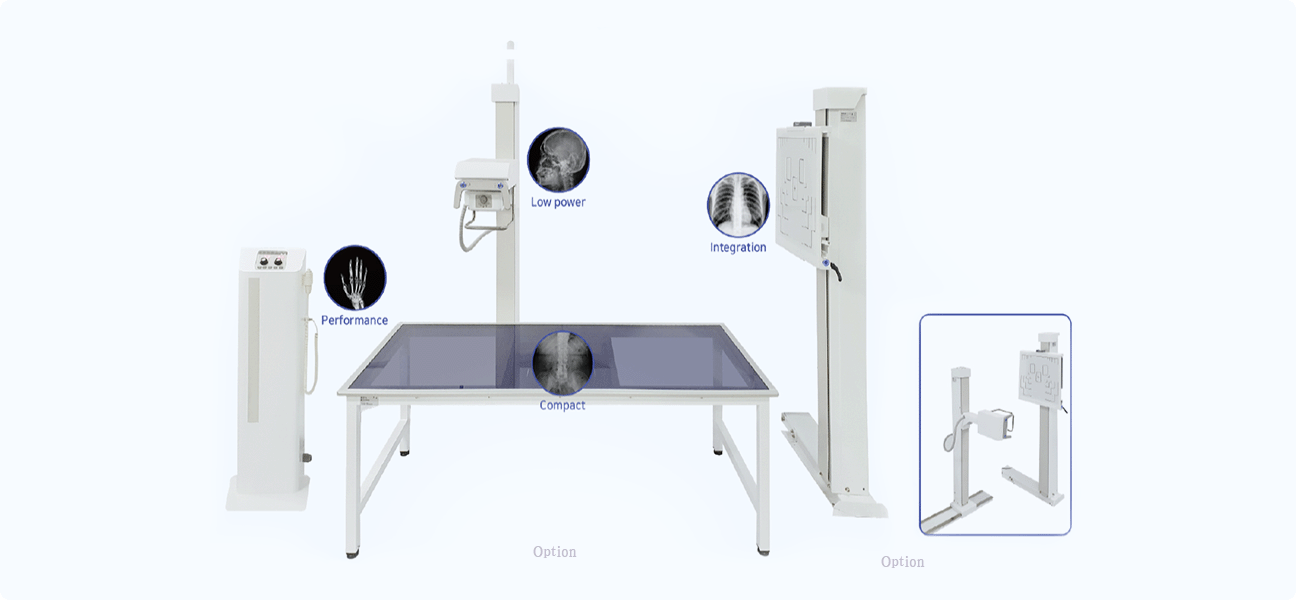

Smart-300
SMART DESIGN, SUPERIOR PERFORMANCE, EASY INSTALLATION, POWER SAVING
| Input | Voltage | 220V ~ ±10% |
|---|---|---|
| Phase / Frequency | Single-phase, 60Hz | |
| Output | Voltage Range | 40 ~ 110 kV (1kV step) (±10%) |
| mAs Range | 0.3 mAs ~ 100 mAs ±(10%~ +0.2mAs) | |
| Tube Current Range | 25 ~ 120 mA | |
| Max. Output Power | 5.6 kW (70 kV / 6.4 mAs) | |
| Power Consumption | 10 kVA | |
| Filtration | Total | 3.5 mm Al |
| X-Ray Tube | Focal Spot (IEC60336:2005) | 1.5 mm |
| Target Angle | 15 º |
